5-Channel Yellow Jacket ADA Cable Protector

Protects Cables And Hoses Up To 1.325" Outside Dia.
Dog Bone Connectors To Extend To Any Desired Length
Reinforced Hinged Lid For Easy Cable Placement
ADA Accessibility Ramps Built In - No Connectors Needed
All-Weather Polyurethane Construction
Patented 5-Bar Tread Surface For Maximum Traction
Interconnects with standard 5 Channel “Dog Bone” Connector Models
Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications

YELLOW JACKET®

YELLOW JACKET® 5-CHANNEL ADA CABLE PROTECTOR has built-in ADA accessibility ramps to provide a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines. Because the ramps are built-in, there is no need for separate connectors.

Another unique feature of this product is that it interconnects directly to a 5-channel standard ramp Yellow Jacket cable protector. This modular interlocking design is available in lightweight 18" sections and it includes a recessed carrying handle on the underside of the protector. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.

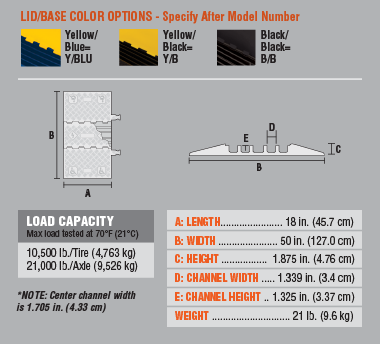

YJ5-125ADA — SPECIFICATIONS

Specyfication data

5-Channel Yellow Jacket ADA Cable Protector

LOAD CAPACITY — Max load tested at 70°F (21° C)
10,500 lb./Tire (4,763 kg) 21,000 lb./Axle (9,526 kg)

COLOR OPTIONS

Yellow lid with blue base = O/BLU
Yellow lid with black base = O/B
Black lid with black base = B/B
