1-Channel General Purpose Drop Over (2.25") Linebacker

  • Protects cables and hoses up to 2.25" outside dia.
  • Patented T-Connectors to extend to any length
  • Drop-over model
  • All-weather polyurethane construction
  • Modular interlocking design is lightweight and easy to transport, setup, disassemble, and store
  • Quick solution to protect single runs of cable and hose lines
  Checkers

HEAVY DUTY LINEBACKER

LINEBACKER® 1-CHANNEL DROP OVER CABLE PROTECTOR offers a quick solution to protect minimal runs of hose and cable lines. These models provide solutions for heavy duty, high load bearing operations as well as lighter duty, general purpose needs for cables up to 3" tall and 2.25" wide.

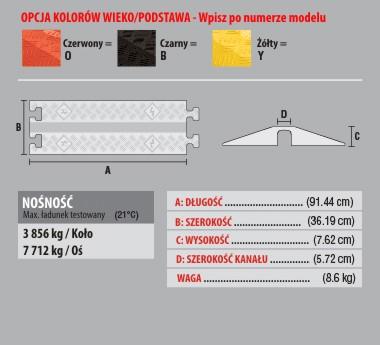

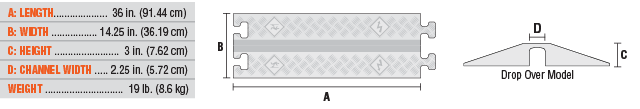

CP1X225-GP-DO — SPECIFICATIONS

Specyfication data

1-Channel General Purpose Drop Over (2.25


LOAD CAPACITY — Max load tested at 70°F (21° C)
8,500 lb./Tire (3,856 kg) 17,000 lb./Axle (7,712 kg)

COLOR OPTIONS

  • Orange
  • Black
  • Yellow
