5-Channel Heavy Duty Linebacker

Protects cables and hoses up to 1.35" outside dia.
Patented T-Connectors to extend to any length
Reinforced hinged lid for easy cable placement
All-weather polyurethane construction
Patented 5-bar tread surface for maximum traction
Easy to transport, setup, disassemble, and store
Ideal for use in oil & gas applications, mining, military, and other industrial environments with heavy trucks and forklifts

HEAVY DUTY LINEBACKER

LINEBACKER® 5-CHANNEL CABLE PROTECTOR with hinged lid provides a safe crossing for vehicles and pedestrian traffic while protecting valuable electrical cables and hose lines from damage in extreme weather conditions and work environments. Modular interlocking design is ideal for use in oil and gas applications, mining, military, and other industrial environments with heavy trucks and forklifts

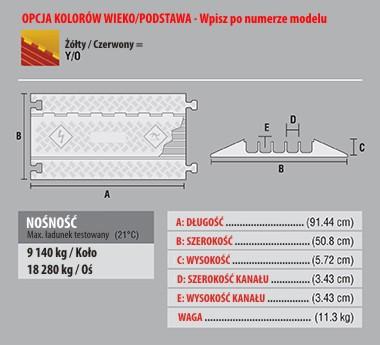

CP4X125 — SPECYFIKACJE

Load Capacitya

Max load tested at 21^oC
9,140 kg
18,280 kg

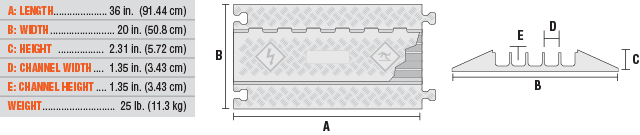

A. Length: (91,44 cm)
B. Width: (50,8 cm)
C. Height: (5,72 cm)
D. Channel width: (3,43 cm)
E. Channel height: (3,43 cm)
F. Weight: (11,3 kg)

Specyfication data

LOAD CAPACITY — Max load tested at 70°F (21° C)
20,150 lb./Tire (9,140 kg) 40,300 lb./Axle (18,200 kg)

COLOR OPTIONS
Yellow lid with orange base = Y/O
