5-Channel General Purpose Linebacker

Protects cables and hoses up to 1.3" outside dia.
Patented T-Connectors to extend to any length
Reinforced hinged lid for easy cable placement
All-weather polyurethane construction
Patented 5-bar tread surface for maximum traction
Easy to transport, setup, disassemble, and store
Ideal for us in entertainment venues, sporting events, and most public, commercial, industrial, and utility applications

GENERAL PURPOSE

LINEBACKER® 5-CHANNEL GENERAL PURPOSE with hinged lid provides a safe crossing for vehicles and pedestrian traffic while protecting valuable electrical cables and hose lines from damage in extreme weather conditions and work environments. Modular interlocking design is ideal for use in entertainment venues, sporting events, and most public, commercial, industrial, and utility applications.

CP5X125-GP — SPECYFIKACJE

Load Capacity

Max load tested at 21^oC
4,763 kg
9,526 kg

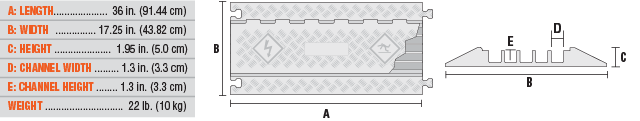

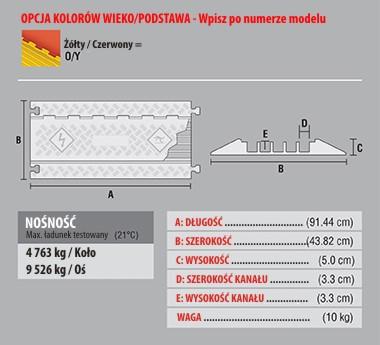

A. Length: (91,44 cm)
B. Width: (43,82 cm)
C. Height: (5,0 cm)
D. Channel width: (3,3 cm)
E. Channel height: (3,3 cm)
F. Weight: (10,0 kg)

Specyfication data

LOAD CAPACITY — Max load tested at 70°F (21° C)
10,500 lb./Tire (4,763 kg) 21,000 lb./Axle (9,526 kg)

COLOR OPTIONS
Orange lid with yellow base = O/Y
