2-Channel Heavy Duty Linebacker

Protects cables and hoses up to 3.25" outside dia.
Patented T-Connectors to extend to any length
Reinforced hinged lid for easy cable placement
All-weather polyurethane construction
Patented 5-bar tread surface for maximum traction
Easy to transport, setup, disassemble, and store
Ideal for use in oil & gas applications, mining, military, and other industrial environments with heavy trucks and forklifts

HEAVY DUTY LINEBACKER

LINEBACKER® 2-CHANNEL CABLE PROTECTORS with a hinged lid is one of the largest open top cable protectors on the market. This wide channel design provides a safe crossing for vehicles and pedestrian traffic while protecting valuable electrical cables and hose lines from damage in extreme weather conditions and work environments. Use this for cables up to 3.25" tall and 3.25" wide. Modular interlocking design is ideal for use in oil and gas applications, mining, military, and other industrial environments with heavy trucks and forklifts.

CP2X325 — SPECIFICATIONS

Load Capacity

Max load tested at 21^oC
4935 kg / Koło
9780 kg / Oś

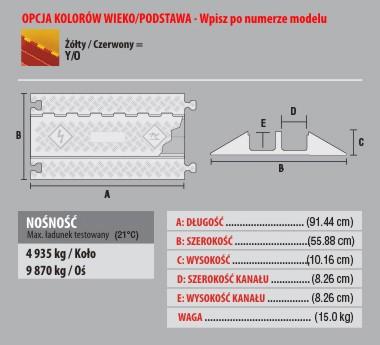

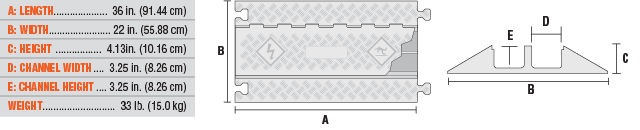

A. Length: (91,44 cm)
B. Width: (55,88 cm)
C. Height: (10,16 cm)
D. Channel width: (8,26 cm)
E. Channel height: (8,26 cm)
F. Weight: (15,0 kg)

Specyfication data

LOAD CAPACITY — Max load tested at 70°F (21° C)
10,880 lb./Tire (4,935 kg) 21,760 lb./Axle (9,870 kg)

COLOR OPTIONS
Yellow lid with Orange base = Y/O
