3-Channel Guard Dog General Purpose Drop Over
- Protects Cables and Hoses Up to 1.325" Outside Dia.
- Dog-Bone Connectors to Extend to Any Desired Length
- Fast Install with Drop-Over Design
- All-Weather Polyurethane Construction
- Patented 5-bar Tread Surface for Maximum Traction
- Connects to Standard Guard Dog 5-Channel
GENERAL PURPOSE GUARD DOG
GUARD DOG® 3-CHANNEL DROP-OVERS protect pipes, conduit, cable and hose lines that are permanently installed or mounted to the ground or floor. Drop-Overs protect from above but do not prevent abrasion from below and should be used on a flat surface only. Ideal for providing a safe crossing for vehicles and pedestrian traffic in public, commercial and industrial applications. This 3-Channel Drop Over System features two extra wide channels to accommodate various quantities and sizes of lines up to 1" tall and 1.65" to 3.2" wide. These lightweight, 18” length Drop Overs are easy to store in service/utility trucks and use when needed.

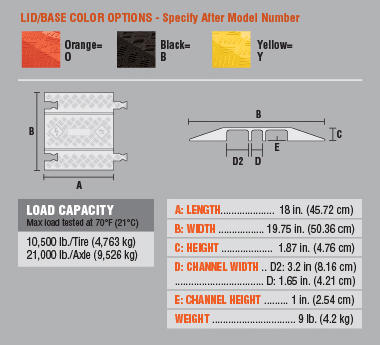

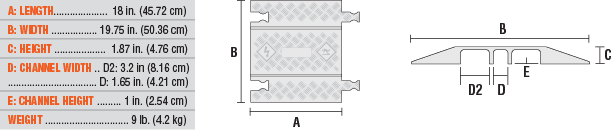

GD3-DO — SPECIFICATIONS
Specyfication data
LOAD CAPACITY — Max load tested at 70°F (21° C)
10,500 lb./Tire (4,763 kg) 21,000 lb./Axle (9,526 kg)
COLOR OPTIONS
- Orange = O
- Black = B
- Yellow = Y
