5-Channel Guard Dog Low Profile ADA

Protects cables and hoses up to .75" outside dia.
Dog Bone Connectors to extend to any desired length
Reinforced hinged lid for easy cable placement
With built-in ADA/DDA Accessibility Ramps
Patented 5-bar tread surface for maximum traction
Modular interlocking design for easy setup

GENERAL PURPOSE GUARD DOG

GUARD DOG® LOW PROFILE models are the most compact top-loading cable protectors on the market. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing capacity for heavy equipment. The Low Profile models are available with your choice of standard or ADA/DDA compliant ramps.

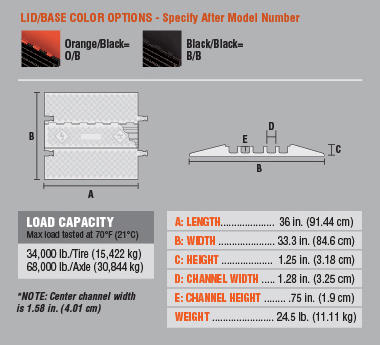

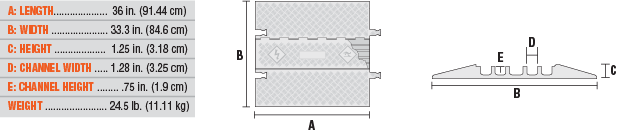

GD5x75 — SPECIFICATIONS

Specyfication data

LOAD CAPACITY — Max load tested at 70°F (21° C)
34,000 lb./Tire (15,422 kg) 68,000 lb./Axle (30,844 kg)

COLOR OPTIONS

Orange lid with black base = O/B
Black lid with black base = B/B
