1-Channel Guard Dog Low Profile ADA Cable Protector

Protects cables and hoses up to .75" outside dia.
Dog-Bone Connectors to extend to any
desired length
Reinforced hinged lid for easy cable placement
With built-in ADA/DDA Accessibility Ramps
Patented 5-bar tread surface for maximum traction
Modular interlocking design for easy setup

GENERAL PURPOSE GUARD DOG

GUARD DOG® LOW PROFILE models are the most compact top-loading cable protectors on the market. These fit cables up to 0.75" tall and 2.25" wide. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing capacity for heavy equipment. The Low Profile models are available with your choice of standard or ADA/DDA compliant ramps.

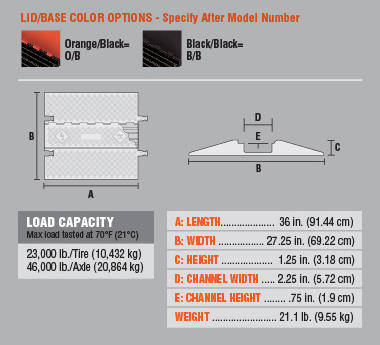

GD1x75 — SPECIFICATIONS

Specyfication data

LOAD CAPACITY — Max load tested at 70°F (21° C)
23,000 lb./Tire (10,432 kg) 46,000 lb./Axle (20,864 kg)

COLOR OPTIONS

Orange lid with black base = O/B
Black lid with black base = B/B
